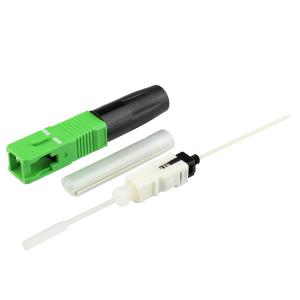

SOC Hot Melt Type Fiber Optic Fast Connector Fusion Splice On Connector

Name: SOC Hot Melt Type Fiber Optic Fast Connector Fusion Splice On Connector
Brand: Qingying or QY
Price: 1 USD

China SOC Hot Melt Type Fiber Optic Fast Connector Fusion Splice On Connector factory

Brand Name : Qingying or QY

Model Number : RSC60Z-APC

Certification : IEC or ISO9001 2015

Place of Origin : China Dongguan

MOQ : 20 Piece/Pieces

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20000 Piece/Pieces per Week 0.3db SC/APC UPC hot melt type fiber optic fast connector

Delivery Time : 12 working days

Packaging Details : Package details: 46 X 33 X 23 CM:(5000PCS)

Product Name : SC/APC UPC fiber optic fast connector

Selling Units : Single item

Package Style : 10pcs/small bag carton packaging

Color : blue

Package details : 46 X 33 X 23 CM:(5000PCS)

OEM : Support

Options : OFNR flame retardant

Application : CWDM System/PON Networks/CATV Links

Contact Now

SOC Hot Melt Type Fiber Optic Fast Connector Fusion Splice On Connector

Qingying factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the

field, which minimizes the potential for operator error and expensive connector scrap.

Compared to mechanical optical fast connector, this new practical connector save V-groove mechanical

connector maintenance and can improve the span life of welding point of connector and reduce

maintenance cost.

Specifications

Fiber Type	SM/MM
Surface polishing	SC/APC/UPC
Color	Green/Blue
insertion loss	0.3dB
return loss	≥60dB
joint endurance	10Times

Applications	2.0/3.0 or FTTH patch cord
Fiber Diameter	125um
Tensile Strength	>20N
Lock Strength	0.2dB
Temperature Cycle	0.3dB
Virbration	0.2dB
Temperature	-40℃~+80℃

Qingying Fusion Splice-on Connector is actually an optical fiber fusion, however the welding point is in the inner end of connector, which makes it no necessary for extra protection equipment, such as fiber protection plate(optical fiber splice tray), optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion.

SOC Hot Melt Type Fiber Optic Fast Connector Fusion Splice On Connector
