OEM SC UPC FTTH Fast Connect Fiber Connectors for Patch panels

Name: OEM SC UPC FTTH Fast Connect Fiber Connectors for Patch panels
Brand: QualitY or QY
Price: 1 USD

China OEM SC UPC FTTH Fast Connect Fiber Connectors for Patch panels factory

Brand Name : QualitY or QY

Model Number : QSC52ZJ1

Certification : ISO9001, RoHS, CE

Place of Origin : Dongguan， China

MOQ : 100pcs for minium order

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 5000pcs per day

Delivery Time : 3-7 Working Days

Packaging Details : PE bag or customized package & cartons

Insertion loss : ≤0.3dB

Return loss : ≥40dB

Color : Blue

Application : FTTH FTTB FTTX Network

Connector type : SC/uPC

Fiber type : SM

Operating temperature : -40~75

Lead time : 3-7working days

Repeatability : ≤0.1dB

Contact Now

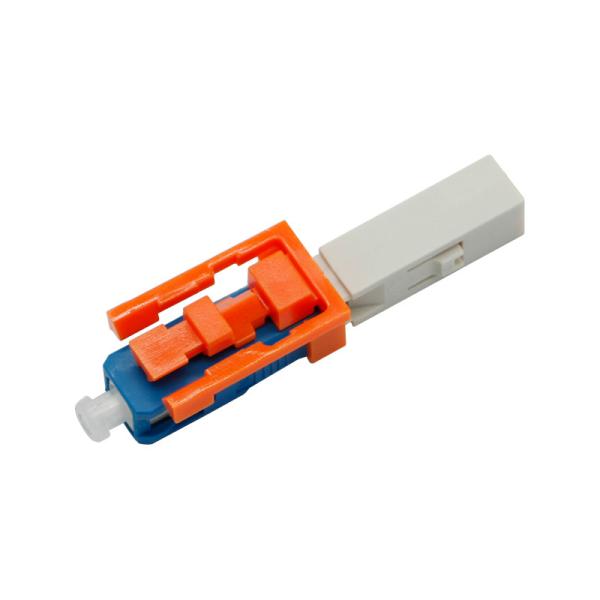

OEM Fiber Optic SC UPC Fast Connector For FTTH

Products Description

Field Installable Connector (FIC, also called Fast Connector) utilizes mechanical splice technology and requires minimal assembly tools. Its ease of deployment and reliability makes it highly suitable for large-scale FTTx builds, with millions supplied every year.

Features

· Field installable high-reliability connector
· No polishing and no cumbersome assembly tools required
·

Fast and easy assembly

Application
· Connections at the desk for LAN environments
· Optical access network
· Fiber to the Subscriber (FTTX) applications
· Patch panels
· Direct equipment termination

Specifications

SC/UPC Field Installable Connector
Item Name	Unit	Parameter
Fiber Type	um	9/125
Polishing	--	UPC
Insertion Loss	dB	≤0.3
Return Loss	dB	≥40
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Operating Temp.	℃	-25 ~ +70
Durability	times	≥1,000
Reusability	times	≥5
Tensile Strength	N	≥50
