China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector

Name: China Manufacturer FTTH Field Quick Assembly Fiber Optic SCUPC Fast Connector
Brand: QualitY or QY
Price: 0.33 USD

China China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector factory

Brand Name : QualitY or QY

Certification : ISO9001

Place of Origin : Dongguan China

MOQ : 100pcs for minium order

Price : USD 0.33usd-0.6usd

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 5000 Piece per Week SC UPC Fast Fiber Optic Connector

Delivery Time : 7 working days

Packaging Details : PE bag or customized package & cartons

Name : SC UPC Field-mounted quick Connector

Model type : QSC60K-UPC

Connector : SC UPC

Insertion loss : <0.3dB(Max0.5dB)

Return loss : >55db

Cable for : 2.0x3.0mm

Manufacturer : Yes

Application : FTTH drop cable,CATV ,CCTV,etc

Contact Now

China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector

Overview

QY's SC single piece connectors are designed for quick and easy termination either on-site or in the factory. The SC range covers Multimode and Singlemode options which include all colours - Beige, Aqua, Violet, Blue and Green options for all Multimode and Singlemode & APC fibre types. All connectors have precision Zirconia ceramic ferrules which are pre-radiused for rapid polishing/finishing.

Features

ROHS, CE compliant
High Reliability
Low return losses due to the APC polish
Easy installation due to the SC connector
Effective data transmission
Reliable optical performance

Application

Fibre Optic Cable Distribution network
Fibre To The Home (FTTH) network
Highly stable and reliable performance
High Success Rate design and technology
Reusable termination capability (up to 5x)
Time-saving

Specification

Item Name	Unit	SC/UPC Field Installable Connector
Item Name	Unit	Grade S (Standard)	Grade P (Premium)
Fiber Type	um	9/125	9/125 (Corning)
Polishing	---	UPC
Insertion Loss	dB	≤0.5	≤0.3
Return Loss	dB	≥45	≥50
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Operating Temp.	℃	-25 ~ +70
Durability	times	≥1,000
Reusability	times	≥5
Tensile Strength	N	≥50

Product Tags:

sc fiber optic connector

fiber optic quick connector

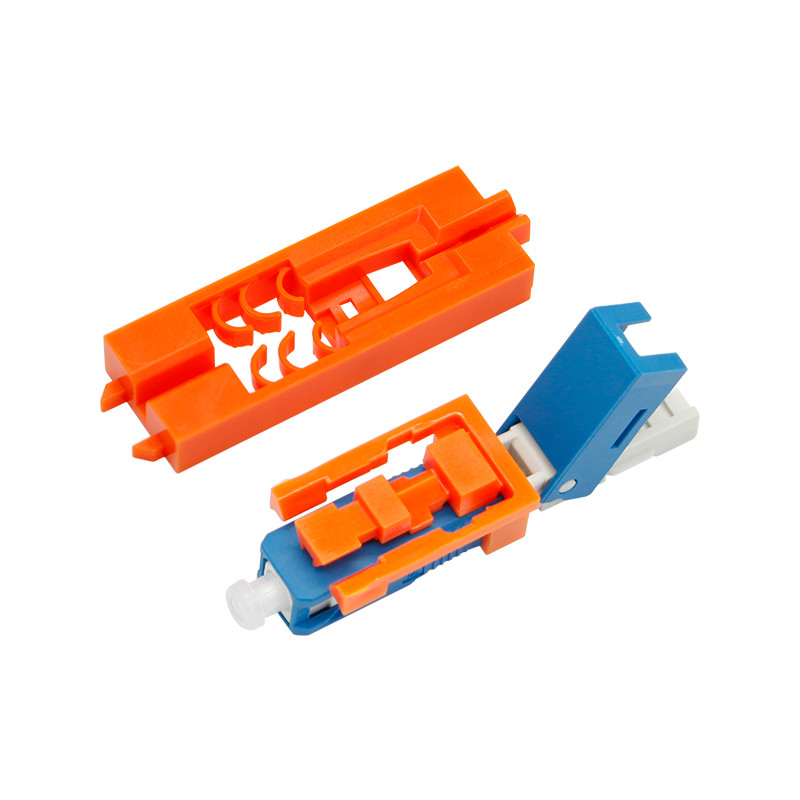

China Manufacturer FTTH Field Quick Assembly Fiber Optic SC/UPC Fast Connector Images
