Fiber Optic SC APC Fast Connector

Name: Fiber Optic SC APC Fast Connector
Brand: QualitY or QY
Price: 1 USD

China Fiber Optic SC APC Fast Connector factory

Brand Name : QualitY or QY

Certification : ISO9001,RoHS,CE

Place of Origin : Dongguan, China

MOQ : 100pcs for minium order

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 5000pcs per day

Delivery Time : 7 working days

Packaging Details : PE bag or customized package & cartons

Product Type : SC Upc Fast Connector

Color : Blue

Insertion loss : ≤0.3dB

Return loss : ≥ 50dB

Repeatability : ≤0.1dB

Durability : ≥ 1000 times

Operating temperature : -25°C ~ +70°C

Contact Now

China Manufacturer FTTH Field Quick Assembly Fiber Optic SC APC Fast Connector

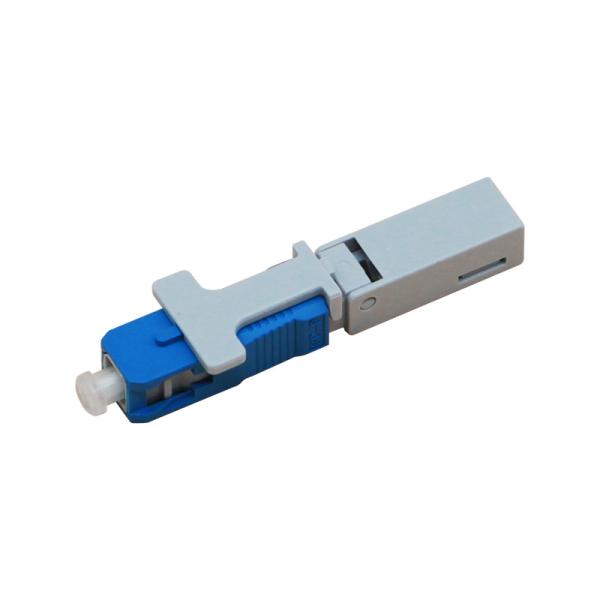

Fiber Optic SC APC Fast Connector

Overview

QY's SC single-piece connectors are designed for quick and easy termination either on-site or in the factory. The SC range covers Multimode and Singlemode options which include all colors - Beige, Aqua, Violet, Blue, and Green options for all Multimode and Singlemode & APC fiber types. All connectors have precision Zirconia ceramic ferrules which are pre-radiused for rapid polishing.

Features

ROHS, CE compliant
High Reliability
Low return losses due to the APC polish
Easy installation due to the SC connector
Effective data transmission
Reliable optical performance

Application

Fibre Optic Cable Distribution network
Fibre To The Home (FTTH) network
Highly stable and reliable performance
High Success Rate design and technology
Reusable termination capability (up to 5x)
Time-saving

Specification

Item Name	Unit	SC/UPC Field Installable Connector
Item Name	Unit	Grade S (Standard)	Grade P (Premium)
Fiber Type	um	9/125	9/125 (Corning)
Polishing	---	UPC
Insertion Loss	dB	≤0.5	≤0.3
Return Loss	dB	≥45	≥50
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Operating Temp.	℃	-25 ~ +70
Durability	times	≥1,000
Reusability	times	≥5
Tensile Strength	N	≥50
