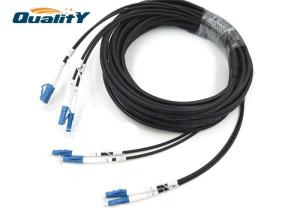

4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC

Product Categories

Armored Optical Cable [102]
MPO Patch Cord [50]
Fiber Optic Patch Cord [186]
Fiber Optic Fast Connector [205]
Fiber Optic Adapter [232]
OLED Screen MP3 Player [1]
Waterproof Cable Connector [60]
Optical PLC Splitter [28]
Fiber Optic Pigtail [52]
Fiber Optic Attenuator [46]
Fiber Optic Termination Box [98]
Fiber Optic Cable Reel [53]
Fiber Optic Tools And Equipment [20]
PLC Steel Tube [6]
Fiber Optical Transceiver [8]

Dongguan Qingying Industry Co., Ltd.

Contact Now

4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC

Name: 4 Core G657A1 Black OD50mm Armored Optical Cable LCUPCLCUPC
Brand: Quality (QY)
Price: 1 USD

China 4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC factory

Brand Name : Quality (QY)

Model Number : QY-4C Armored Cable

Certification : ISO90012015

Place of Origin : Dongguan China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000pcs/day

Delivery Time : 5-12wording days

Packaging Details : PE bag/carton packing

Fiber type : G657A1

Connector type : LC/UPC-LC/UPC

Length : Customized

Color : Black

Fiber Core : 4cores

Storage temperature : -20℃～+70℃

Materail : PVC/LSZH

Application : FTTA,FTTH,Oil & Ga,Broadcast & Industrial

Out diameter : 5.0mm

Contact Now

LC/UPC-LC/UPC,SM,4 Core,G657A1,Armored Fiber Cable, PVC/ LSZH,Black ,OD=5.0mm

Armored fiber cable features a protective corrugated steel tube making it ideal for tactical and harsh outdoor applications. Its loose tube construction surrounds the fibers in a protective steel tube, allowing for expansion and contraction of the cable without damage to the fibers. The cable built with a stainless-steel tube inside which also can protect the fibers from the damages due to rats and wild animals.

Feature

High mechanical strength
High abrasion resistance
Superior shear strength
High elasticity jacket
Enhanced crush resistance
ROHS, CE compliant

Specification

Cable Count	OD (mm)	Weight	Tensile strength		General attenuation		Minimal Bending radius	Storage temperature
			Short term	Long term	Singlemode	Multimode
4	5.0±0.2	35kg	1200N	600N	1310nm ≤0.4dB/km	850nm ≤3.0dB/km	20D	-20℃～+70℃
					1550nm ≤0.3dB/km	1300nm ≤1.0dB/km

Cable Structure

l 4C: 4×Tight Buffer(0.6mm)+Spiral Steel Tube+Kevlar+PVC Jacket OD=5.0mm

4 Core G657A1 Black OD5.0mm Armored Optical Cable LC/UPC-LC/UPC
