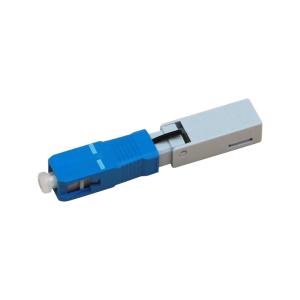

Insertion Loss 0.2dB SC UPC Fiber Optic Fast Connector 50mm Dimension

Name: Insertion Loss 02dB SC UPC Fiber Optic Fast Connector 50mm Dimension
Brand: QualitY or QY
Price: 1 USD

China Insertion Loss 0.2dB SC UPC Fiber Optic Fast Connector 50mm Dimension factory

Brand Name : QualitY or QY

Model Number : QSC53KJ1-UPC

Certification : ISO9001 2015

Place of Origin : China Dongguan

MOQ : 100 pcs Fiber Optic SC UPC Fast Connector

Price : Negotiation

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 5000pcs per day

Delivery Time : 8-15 working days

Packaging Details : PE bag or customized package & cartons

Connector : sc fiber optic fast connector

Exchange : ≤ 0.2dB

Polishing : UPC

Packing : PE bag

Color : Blue

Application : FTTH FTTB FTTX Network

Cable : 2.0x3.0 drop cable

Contact Now

Insertion Loss 0.2dB SC UPC Fiber Optic Fast Connector 50mm Dimension / Sc Fast Connector

Description

Field Assembly SC quick connector can provide a quick and easy of fiber in the field.Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber defaces inspection.

Advantages:

1.Low Insertion Loss

2.Dual v groove design for high stability and reliability

3.Durable life

4.Easy installation

5.OEM service for accessories

Specification:

Connector type	SC/PC,SC/APC,FC/PC,FC/APC
dimension	50mm
Fiber cable type	3.0mm,3.0x2.0mm drop cable
Grinding end-face	PC,UPC,APC
Insertion loss
SM	PC/UPC APC
SM	≤0.2dB ≤0.2dB
Return loss
SM	APC PC/UPC
SM	≥50dB ≥45dB
Tension test	≥100N
Temperature range	-40℃~+75℃
