50/125 2/4/8/12/24 Cores Indoor Fiber Optic Cable LSZH Jacket

Brand Name : QY

Model Number : 50/125 2/4/8/12/24 Core Indoor Fiber Optic Cable

Certification : ISO 9001 2015

Place of Origin : Dongguan China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 20000 Meter/Meters per Week

Delivery Time : 15 days after deposit

Packaging Details : 1.Fumigation of wood drum, plywooden drum or wooden drum 2.carton box 3.customized

Product name : GJFJV 50/125 2/4/8/12/24 Core Indoor Fiber Optic Cable

Jacket Type : PVC or LSZH

Type : Coaxial

Fiber Count : 2-288

Jacket Color : Blue /customize accept

OEM : Available

Cable description : printing

Fiber type : Single mode or multimode

Laying method : Indoor cabling

Contact Now

GJFJV 50/125 2/4/8/12/24 Core Indoor Fiber Optic Cable

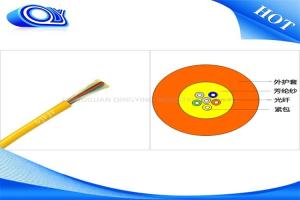

The tight-buffered fibers which are sheathed with special buffer material to protect the fiber are stranded around the FRP(Fiber-reinforced plastic), then, a layer of Aramid yarn is applied as a strength member, the cable is completed with a PVC jacket. (02-12 fiber, Stranded structure, FRP Strength Member,1-fiber subunit(Φ900μm Tight buffer, Aramid yarn), PVC jacket.

Characteristics

Good mechanical and temperature performance
A high strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber

Good water resistance material prevents longitudinal seepage
Blue flame retardant PVC as a second sheath to make the cable has the good flame retardant performance.

Crush resistance and flexibility
Two parallel steel wires ensure tensile strength
PSP enhancing moisture-proof and anti rodent

	50/125μm	62.5/125μm	G652	G655
Attenuation (+20°C)	@850nm	≤3.5dB/km	≤3.5dB/km
	@1300nm	≤1.5 dB/km	≤1.5 dB/km
	@1310nm			≤0.45Db/km	≤0.50Db/km
	@1550nm			≤0.30Db/km	≤0.50Db/km
Bandwidth (Class A)	@850nm	≥500Mhz·km	≥200Mhz·km
Bandwidth (Class A)	@1300nm	≥1000Mhz·km	≥600Mhz·km
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc				≤1260nm	≤1480nm
Attenuation at temperature cycling α(-20°C~+85°C)	@1300nm	≤0.25dB/km	≤0.25dB/km
Attenuation at temperature cycling α(-20°C~+85°C)	@1550nm			≤0.10dB/km	≤0.10dB/km

Technical Data

Item	Single mode		Multi mode
Splicing Type	UPC	APC	PC
Insertion Loss	<or=0.3dB	<or=0.2dB	<or=0.3dB
Reture Loss	>or=45dB	>or=55dB	>or=35dB
Repeatability	<or=0.1dB	<or=0.1dB	<or=0.1dB
Temperature	-40/+80

Specifications&Performances

Cable Count	ITEM	CABLE OD.mm(a)	S.S.T. OD.mm(b)	T.B.O.F. OD.mm(C)
4F	4.5MM	Φ4.5±0.2	Φ2.4±0.02	Φ0.5
6F	4.5MM	Φ4.5±0.2	Φ2.6±0.03	Φ0.5
8F	5.0MM	Φ5.0±0.2	Φ2.8±0.05	Φ0.5
10F	5.0MM	Φ5.0±0.25	Φ3.0±0.05	Φ0.5
12F	5.5MM	Φ5.5±0.25	Φ3.2±0.05	Φ0.5
24F	7.0MM	Φ7.0±0.3	Φ4.3±0.05	Φ0.5
