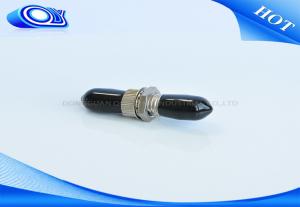

ST / UPC SM SX Fiber Optic Adapter With Metal Housing

Dongguan Qingying Industry Co., Ltd.
Contact Now

ST / UPC SM SX Fiber Optic Adapter With Metal Housing

Brand Name : Qingying or QY

Model Number : ST Fiber Optic Adapter

Certification : ISO9001, RoHS

Place of Origin : Dongguan China

MOQ : 10pcs for minium order

Price : negotiation

Payment Terms : Western Union, T/T, PayPal

Supply Ability : 50000pcs per week Adapter

Packaging Details : PE bag or customized package & cartons

Delivery Time : 3-7 working days

Grade : Standard, Premium

Insertion Loss : S≤0.2dB, P≤0.1dB

Repeatibility : ≤0.1dB

Interchangeability : ≤0.2dB

Operating Temp. : -25℃ - +70℃

Durability : ≥1000 times

Fiber Count : Simplex

Application : FTTH FTTB FTTX Network,Network,Telecommunication/Fiber Optic CATV/Multimedia

Color : Sliver

Contact Now

ST / UPC SM SX Fiber Optic Adapter With Metal Housing

ST / UPC SM SX Fiber Optic Adapter With Metal Housing

Description:

Fiber Optic Adaptor(also called coupler, or flange coupler)is the device to couple two connectors together. QY's adaptor adopts a high precision alignment sleeve to keep high reliability and better performance. The color of housing is available in different colors or specified by the customer, and with options for flange or flangeless body.

Applications:

  • Fiber Optic Telecommunications
  • LAN (Local Area Network)
  • FTTH (Fiber To The Home)
  • CATV&CCTV System
  • High-speed transmission systems
  • Fiber optic sensing
  • Industrial, Mechanical, and Military

Features:

  • Low insertion loss and back reflection loss
  • Ferrule end surface pre-domed
  • Precision anti-rotation key and corrosion resistant body
  • UL-rated plastic housing
  • Telcordia style boots
  • Free-floating ceramic ferrule
  • Zirconia sleeves or Phosphor bronze sleeves
  • D-shaped easily installs into panel mount
  • RoHS compliant

Specification

Item Name

Unit

FC/UPC Optic Fiber Adapter
Grade S (Standard) Grade P (Premium)
Insertion Loss dB ≤0.2 ≤0.1
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. -25 ~ +70
Durability times ≥1,000
Fiber Count --- Simplex, Duplex
